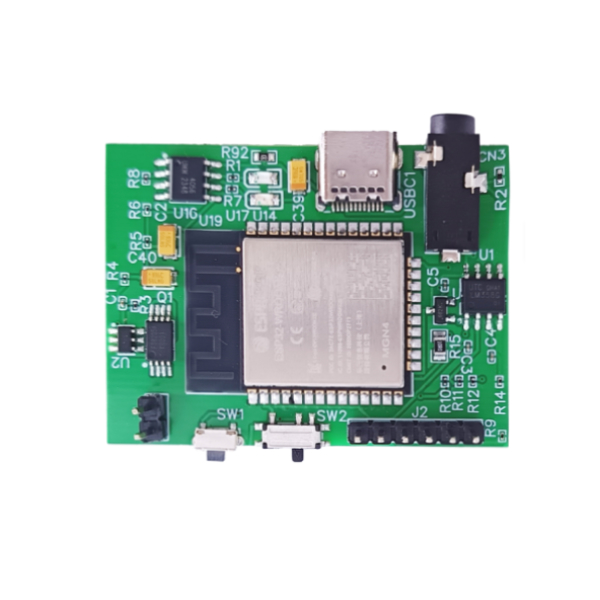

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Automated Beverage Preparation: The PCBA precisely controls multiple liquid dispensing systems and mixing mechanisms to automatically prepare complex cocktail recipes with consistent quality and precise ingredient proportions.

• Commercial Bar Automation: Deployed in hospitality venues to increase service speed and consistency while reducing staff training requirements and minimizing recipe errors during high-volume operations.

• Home Entertainment Systems: Enables users to create professional-quality cocktails for social gatherings through intuitive touchscreen interfaces and pre-programmed recipe libraries suitable for home environments.

• Educational Bartending Tool: Serves as a learning platform for mixology students to understand drink recipes, proper mixing techniques, and ingredient combinations through guided digital preparation processes.

• Mobile Event Services: Provides consistent cocktail production capabilities for catering services and mobile bars at weddings, corporate events, and festivals where reliable, high-volume beverage service is required.

• Recipe Development Platform: Allows professional mixologists to create, test, and store new drink formulations with precise measurement tracking and repeatable preparation parameters.

• Inventory Management Integration: Connects with bar management systems to monitor ingredient levels, track consumption patterns, and automate reordering processes for efficient stock control.

PCBA Features

1. Multi-Channel Pump Control System: The PCBA incorporates precise peristaltic or diaphragm pump controllers with flow rate calibration, managing multiple liquid ingredients simultaneously with accuracy within ±1ml for consistent drink quality.

2. Integrated Flow Sensor Network: Features multiple liquid flow sensors that provide real-time feedback to the control system, ensuring accurate ingredient measurements and detecting potential blockages or empty containers.

3. Wireless Connectivity Modules: Includes both Wi-Fi and Bluetooth connectivity for recipe updates, remote control via mobile applications, and integration with point-of-sale systems in commercial environments.

4. Advanced User Interface Controller: Supports high-resolution touchscreen displays with intuitive graphical interfaces, recipe browsing capabilities, and customizable drink preference settings for different user profiles.

5. Smart Power Management System: Employs sophisticated power distribution with motor driver protection circuits and energy-efficient pump control, ensuring reliable operation during continuous use while preventing overheating.

6. Precision Mixing Mechanism Control: Manages specialized components including ice crushers, shaker mechanisms, and stirring motors with variable speed control to accommodate different drink preparation requirements.

7. Sensor-Based Safety Systems: Implements liquid detection sensors, temperature monitoring, and motor overload protection to prevent spills, equipment damage, and ensure safe operation during automated processes.

8. Recipe Memory and Storage: Includes substantial onboard memory with cloud synchronization capabilities for storing hundreds of drink recipes and user customization preferences with rapid access and retrieval.

FAQ

​PCB & PCBA  Description​

PCB Assembly OEM Service

Electronic Components Material Purchasing

Bare PCB Fabrication

Cable, Wire-harness Assembly, Sheet Metal, Electrical Cabinet Assembly Service

PCB Assembly Service: SMT, BGA, DIP

PCBA test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)

Conformal Coating Service

Prototyping and Mass Production

​​

PCBA ODM service

PCB Layout, PCBA Design According To Your Idea

PCBA Copy/Clone

Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design

Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming

Embedded User Interface Design / lSystem Hardware Design

​
